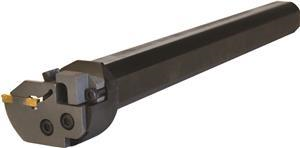

3/16 Inch (5mm) Width of Cut x 21.5mm Depth of Cut Left Hand Seat 5 SLS I.D. Grooving Blade
- Item Code: 350112-W
- Brand: WIDIA
- Unit Size: 1
Description
WMT™ Grooving, Cut-Off, and Turning - SLS Boring Bars
ID Grooving
Tech Specs
Back To Top| Adapter Type Machine Side-EPP | KMC - Cartridge Mount Kenna |
|---|---|
| Catalog Groove Width (Inch) | 0.1874 |
| Catalog Groove Width (mm) | 4.760 |
| Cutting Depth (Inch) | 0.8500 |
| Cutting Depth (Metric) | 21.590 |
| Max Depth of Cut (mm) | 21.590 |
| Tool Length (Fraction) | 2.2496 |
| Tool Length (Inch) | 2.2496 |
| Tool Length (Metric) | 57.140 |
| Tool Overall Length (Inch) | 2.2496 |
| Tool Overall Length (mm) | 57.140 |
| Cutting Height (Metric) | 24.770 |
| Body Material Group | S |
| Brand | WIDIA |
| Product Type | Modular Blade |
| Cutting Height (Inch) | 0.9752 |
| Lead Angle ISO | 90.000 |
| Units of Tool (Extract) | B - Both Metric & Inch |
| Adapter Style Machine Side-EPP | KMC-29WID/MAN SerratedBlade Mt |
| Clamping Type | Y - A2/A3/A4/PG/TG Clamping |
| Lead Angle ANSI | 0.000 |
| Number of Inserts | 1 |
| Adapter Style Machine Side | WID/MAN Serrated Blade MT |
| Adapter Type Machine Side | KMTL Cartridge Mount |
