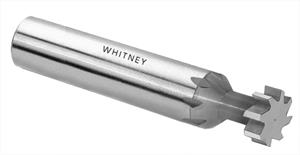

5/16 in. x 1/16 in. TiN Coated Small Solid Carbide Keyseat Cutter

  • Item Code: 35319
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Small Solid Carbide Keyseat Cutters

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Smaller than Standard Sizes
    • CNC Precision
    • C2 Micrograin Standard

Tech Specs

Back To Top
UPC 648672353194
Cut Width 1/16"
Material C2 Micrograin Carbide
Metric Diameter 7.94 mm
Width Tolerance +0", -0.0005"
Neck Diameter 0.15625
Overall Length (Inch) 2"
Brand Whitney Tool
Shank Diameter 3/8"
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
Number of Teeth 8
OD Tolerance 0.002"
Coating/Finish TiN
Fractional Diameter 5/16"
Shank Type Straight
