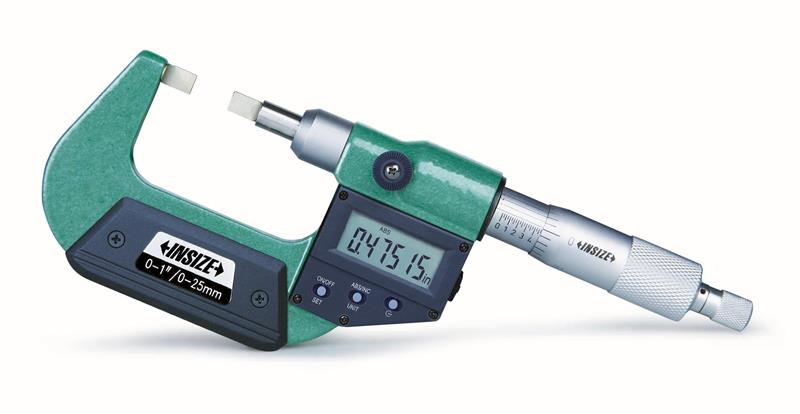

0 Inch - 1 Inch, 0mm-25mm Electronic Blade Micrometer

  • Item Code: 3532-25E
  • Brand: Insize
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measure the groove diameter of shafts and keyways. Resolution .00005"/0.001mm.
    • Non-rotating spindle. Button function: on/off, set, inch/mm, ABS/INC, data output.
    • Data output. SR44 or LR44 battery, automatic power off. Ratchet stop.
    • Supplied with setting standards (except 0-1"/0-25mm).

Tech Specs

Back To Top
Accuracy ±4 µm
Battery Type LR44, SR4
Blade Thickness 0.75 mm
Minimum Measurement 0 in, 0 mm
Throat Depth 32 mm
Data Output RS232
Anvil Type Blade
Head Diameter 18 mm
Rotating Spindle Non-Rotating
Blade Depth 6.5 mm
Thimble Type Ratchet Stop
Brand Insize
Measurement Type Electronic
Spindle Type Flat
Digital Counter None
Maximum Measurement 1 in, 25 mm
Type Blade
Resolution 0.00005 in, 0.001 mm
