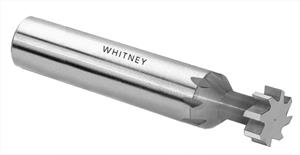

3/8 in. x 1/32 in. TiN Coated Small Solid Carbide Keyseat Cutter

  • Item Code: 35323
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Small Solid Carbide Keyseat Cutters

Straight Tooth

Made in USA

Features Tech Specs

Features

Back To Top
    • Smaller than Standard Sizes
    • CNC Precision
    • C2 Micrograin Standard

Tech Specs

Back To Top
UPC 648672353231
Brand Whitney Tool
OD Tolerance 0.002"
Cut Width 1/32"
Overall Length (Inch) 2"
Width Tolerance +0", -0.0005"
Material C2 Micrograin Carbide
Fractional Diameter 3/8"
Number of Teeth 8
Coating/Finish TiN
Neck Diameter 0.1875
Shank Type Straight
Metric Diameter 9.53 mm
Shank Diameter 3/8"
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
