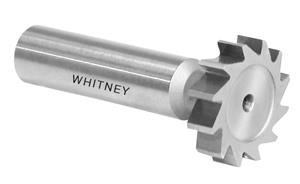

1-3/8 in. x 3/8 in. TiN Coated Solid Carbide #1211 (F) Keyseat Milling Cutter
- Item Code: 35361
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Solid Carbide Keyseat Cutters - Solid Carbide
Straight Tooth
Made in USA
Features
Back To Top- Right Hand Cut
- 1/2" Dia. Shank
- 2" Under Head Length
Tech Specs
Back To Top| UPC | 648672353613 |
|---|---|
| American Standard # | 1211 |
| Metric Diameter | 34.93 mm |
| Neck Diameter | 0.468 |
| Cut Width | 3/8" |
| Number of Teeth | 14 |
| Material | C2 Micrograin Carbide |
| Shank Diameter | 1/2" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Tooth Configuration | Straight |
| Width Tolerance | +0", -0.0005" |
| Brand | Whitney Tool |
| Coating/Finish | TiN |
| Shank Type | Straight |
| Old Standard # | F |
| Shank Length | 2 |
| OD Tolerance | +0.015", +0.020" |
| Fractional Diameter | 1-3/8" |
| Overall Length (Inch) | 2-3/8" |
