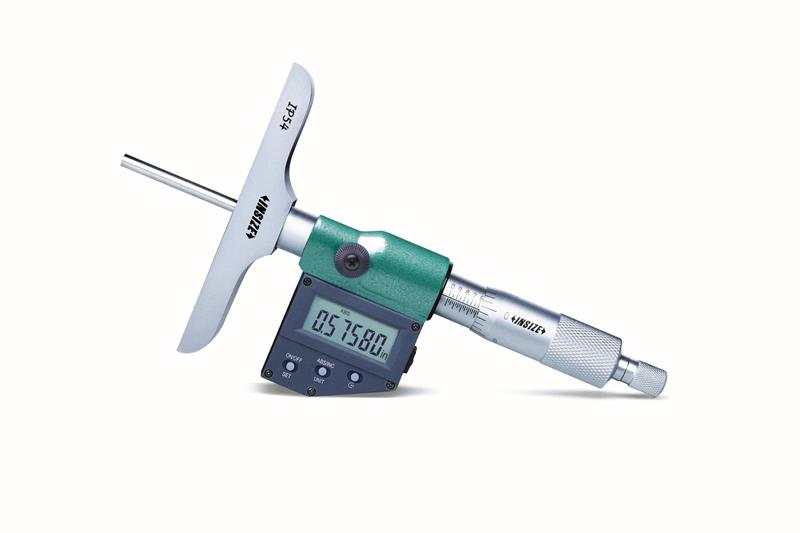

0 Inch - 6 Inch, 0mm-150mm Electronic Depth Micrometer

  • Item Code: 3540-150E
  • Brand: Insize
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Resolution: .00005"/0.001mm. Micrometer head accuracy: �.00012".
    • Rod accuracy: �[.001+.0005(L/3)]", L is the measuring range in inch.
    • Button function: on/off, set, inch/mm, ABS/INC, data output. IP54 dust/waterproof. Data output.
    • SR44 or LR44 battery, automatic power off. Rods with flat end. Ratchet stop.

Tech Specs

Back To Top
Base Length 4 in
Number of Rods 6
Resolution 0.00005 in
Minimum Measurement 0 in
Data Output RS232
Rod Diameter 4.5 mm
Maximum Measurement 6 in
Thimble Type Ratchet Stop
Brand Insize
Measurement Type Electronic
Battery Type SR44
Digital Counter None
Water Resistance Rating IP 5
Accuracy ±3 µm
Rod Type Non-Rotating
