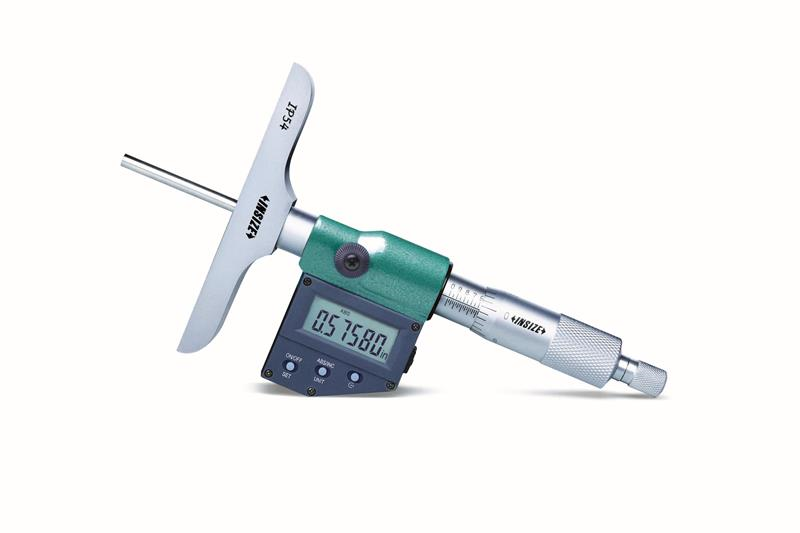

0 Inch - 12 Inch, 0mm-300mm Electronic Depth Micrometer

  • Item Code: 3540-300E
  • Brand: Insize
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Resolution: .00005"/0.001mm. Micrometer head accuracy: �.00012".
    • Rod accuracy: �[.001+.0005(L/3)]", L is the measuring range in inch.
    • Button function: on/off, set, inch/mm, ABS/INC, data output. IP54 dust/waterproof. Data output.
    • SR44 or LR44 battery, automatic power off. Rods with flat end. Ratchet stop.

Tech Specs

Back To Top
Accuracy ±3 µm
Data Output RS232
Number of Rods 12
Rod Diameter 4.5 mm
Water Resistance Rating IP 5
Base Length 4 in
Minimum Measurement 0 in
Resolution 0.00005 in
Battery Type SR44
Digital Counter None
Maximum Measurement 12 in
Rod Type Non-Rotating
Thimble Type Ratchet Stop
Brand Insize
Measurement Type Electronic
