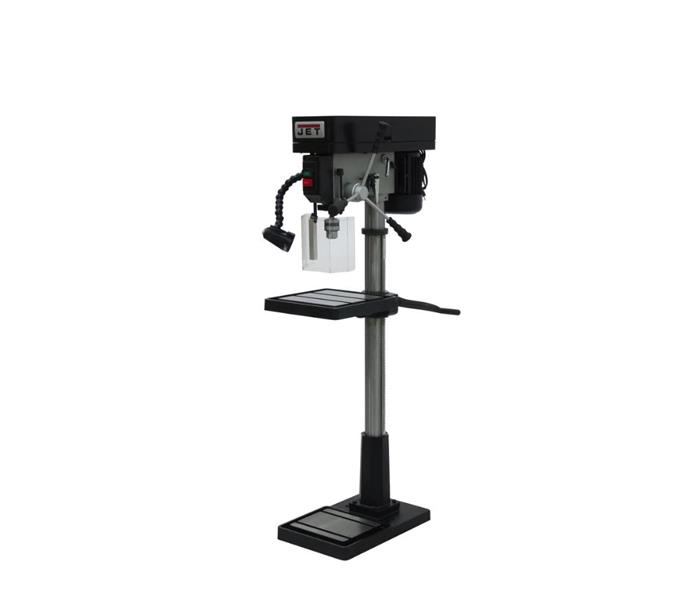

17 in., IDP-17, Industrial Floor Model Drill Press

  • Item Code: 354300
  • Brand: Jet
  • Unit Size: 1

Description

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Features Tech Specs

Features

Back To Top
    • For added Safety, the IDP-17, 17" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
    • Spindle is supported by high quality ball bearings
    • Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
    • Large Hand Grips designed with the users comfort in mind
    • Rotating, 45° tilting, crank-operated worktable with quick release clamp
    • A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
    • Adjustable tension spindle return spring
    • Drill chuck and key attach to the side of the drill press always within reach of the operator
    • On/off switch located on front of the drill press head
    • Heavy Duty construction

Tech Specs

Back To Top
Base Dimensions (In.) 21-3/4 x 13-3/4
Base Work Table (In.) 16-15/16 x 10-13/16
Distance Column to Spindle (In.) 8-3/8
Drilling Capacity Cast Iron (In.) 3/4
Drills to Center of Circle (in) 17
Gross Weight (lbs.) 265
Model Number IDP-17
Quill Diameter (In.) 2-1/16
Range of Spindle Speeds (RPM) 350 - 2,800
Spindle Distance to Base (In.) 50
Spindle Distance to Table (Max.) (In.) 30-1/2
Spindle Travel (In.) 3-5/16
T-Slot Centers (In.) 9/16
UPC 731325466737
Weight (Lbs.) 276
Style (Type) Belt Drive
Country of Origin TW
Motor (HP) 1 HP, 115/230V, 1Ph
T-Slots Number and Size (In.) 2 and 1/2
Drilling Capacity Mild Steel (In.) 5/8
Table Size (L x W) (In.) 14 x 14
Chuck Size (In.) 5/8
Base Slots Number & Size (In.) 2 and 1/2
Brand Jet
Number of Spindle Speeds 12
Spindle Taper (In. x TPI) MT-2
