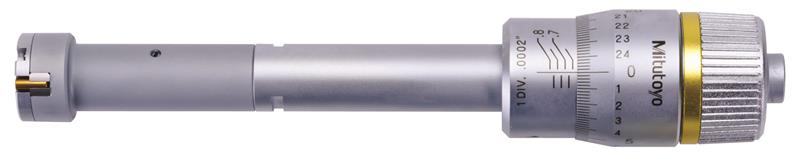

0.65 Inch - 0.8 Inch, 0.0002 Inch, Holtest, Titanium Nitride Coated Contact Points, Ratchet Stop

  • Item Code: 368-265
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Highly durable because of carbide-tipped contact points.
    • Optional Setting Rings for zero point adjustments.
    • Can measure deep holes with optional Extension Rods.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch .65 In
Length Measurement 4.02 In
Measuring Method 3-point
Resolution or Graduation .0002 In
Individual or Set Individual
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Primary Measuring Range Upper - Inch .8 In
Accuracy ±.0001 In
Case Part Number 04MAA266
Clutch Ratchet Stop
Brand Mitutoyo
Mechanical or Digital Mechanical
Range .65 - .8 In
Case Material Plastic Case
