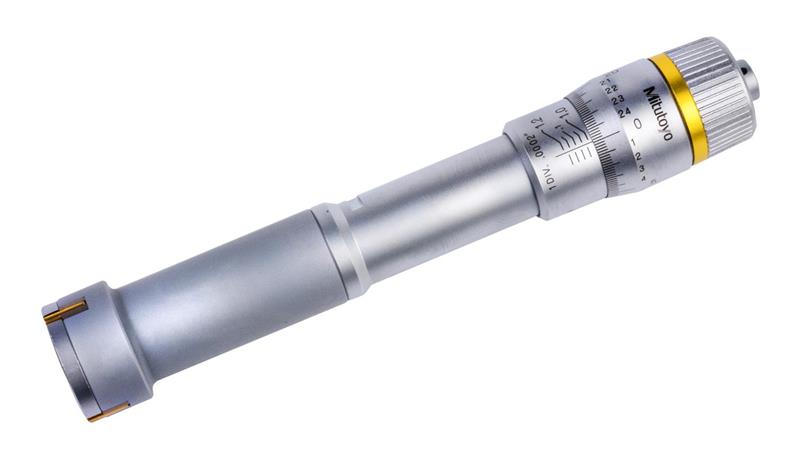

1 Inch - 1.2 Inch, 0.0002 Inch, Holtest, Titanium Nitride Coated Contact Points, Ratchet Stop

  • Item Code: 368-267
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Highly durable because of carbide-tipped contact points.
    • Optional Setting Rings for zero point adjustments.
    • Can measure deep holes with optional Extension Rods.

Tech Specs

Back To Top
Range 1 - 1.2 In
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Case Material Plastic Case
Accuracy ±.00015 In
Case Part Number 04MAA266
Length Measurement 4.02 In
Primary Measuring Range Upper - Inch 1.2 In
Resolution or Graduation .0002 In
Clutch Ratchet Stop
Primary Measuring Range Lower - Inch 1 In
Individual or Set Individual
Brand Mitutoyo
Measuring Method 3-point
Mechanical or Digital Mechanical
