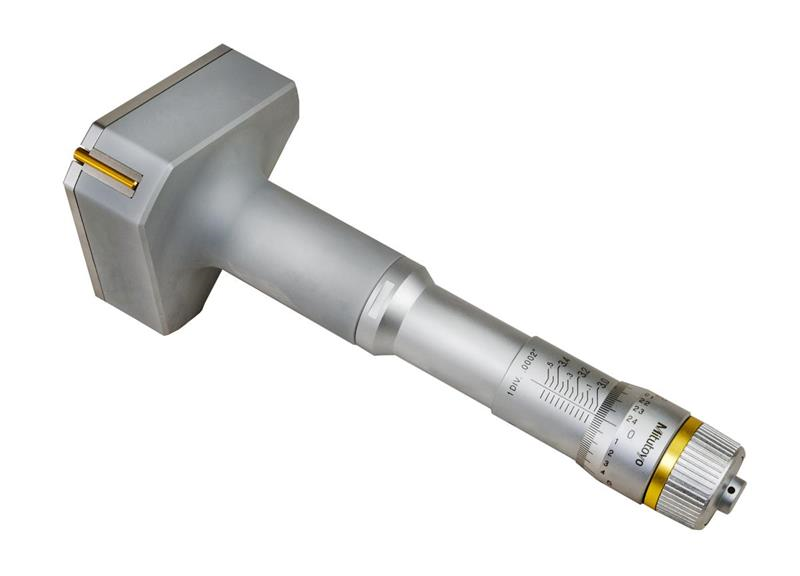

3-3.5 Inch, .0002 Inch, Holtest, Titanium Nitride Coated Contact Points, Ratchet Stop

  • Item Code: 368-272
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Highly durable because of carbide-tipped contact points.
    • Optional Setting Rings for zero point adjustments.
    • Can measure deep holes with optional Extension Rods.

Tech Specs

Back To Top
Range 3 - 3.5 In
Accuracy ±.00015 In
Case Part Number 04MAA266
Mechanical or Digital Mechanical
Primary Measuring Range Lower - Inch 3 In
Measuring Method 3-point
Primary (Outside Diameter) Contact Point Material Titanium Nitride
Length Measurement 4.02 In
Resolution or Graduation .0002 In
Brand Mitutoyo
Individual or Set Individual
Primary Measuring Range Upper - Inch 3.5 In
Case Material Plastic Case
Clutch Ratchet Stop
