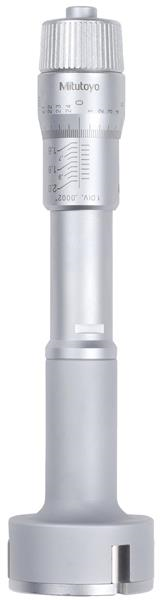

1.2 Inch - 1.6 Inch, 0.0002 Inch, Holtest, Type II, Alloyed Steel Contact Points, Ratchet Stop

  • Item Code: 368-868
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has three contact points made of alloyed steel.
    • Measurement can be taken closer to the bottom of the blind bore.
    • Can measure deep holes with optional Extension Rods.

Tech Specs

Back To Top
Measuring Method 3-point
Accuracy ±.00015 In
Length Measurement 3.86 In
Primary Measuring Range Lower - Inch 1.2 In
Range 1.2 - 1.6 In
Primary Measuring Range Upper - Inch 1.6 In
Resolution or Graduation .0002 In
Case Part Number 04MAA266
Primary (Outside Diameter) Contact Point Material Hardened Steel
Case Material Plastic Case
Clutch Ratchet Stop
Individual or Set Individual
Brand Mitutoyo
Mechanical or Digital Mechanical
