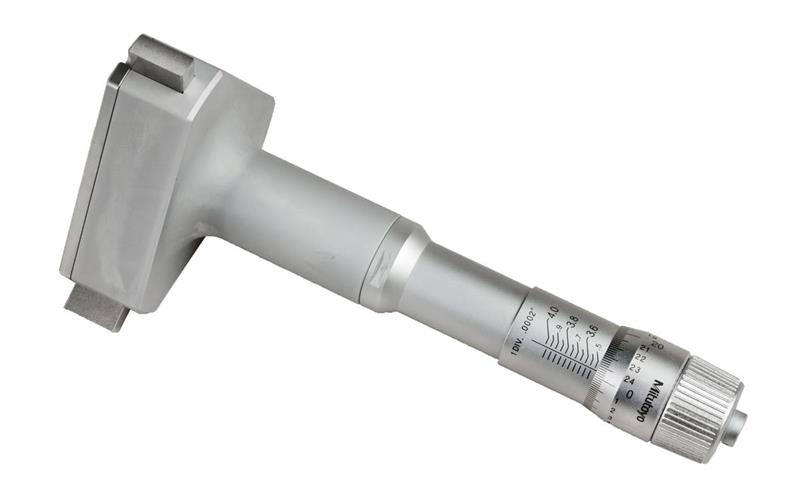

3.5 Inch - 4 Inch, 0.0002 Inch, Holtest, Type II, Alloyed Steel Contact Points, Ratchet Stop

  • Item Code: 368-873
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has three contact points made of alloyed steel.
    • Measurement can be taken closer to the bottom of the blind bore.
    • Can measure deep holes with optional Extension Rods.

Tech Specs

Back To Top
Primary Measuring Range Lower - Inch 3.5 In
Range 3.5 - 4 In
Accuracy ±.00015 In
Case Material Plastic Case
Measuring Method 3-point
Individual or Set Individual
Case Part Number 04MAA266
Length Measurement 3.86 In
Resolution or Graduation .0002 In
Mechanical or Digital Mechanical
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Upper - Inch 4 In
Brand Mitutoyo
Clutch Ratchet Stop
