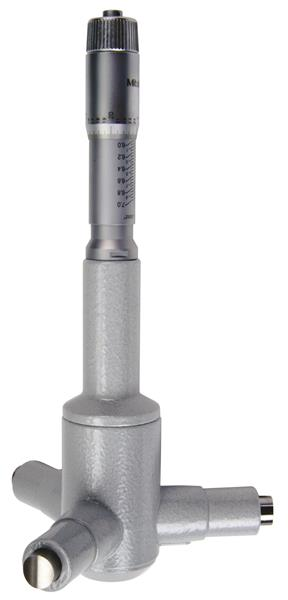

6-7 Inch, .0002 Inch, Holtest, Type II, Alloyed Steel Contact Points, Ratchet Stop

  • Item Code: 368-876
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has three contact points made of alloyed steel.
    • Measurement can be taken closer to the bottom of the blind bore.
    • Can measure deep holes with optional Extension Rods.

Tech Specs

Back To Top
Case Part Number 04MAA266
Primary (Outside Diameter) Contact Point Material Hardened Steel
Primary Measuring Range Lower - Inch 6 In
Length Measurement 3.86 In
Primary Measuring Range Upper - Inch 7 In
Resolution or Graduation .0002 In
Case Material Plastic Case
Clutch Ratchet Stop
Range 6 - 7 In
Brand Mitutoyo
Measuring Method 3-point
Mechanical or Digital Mechanical
Accuracy ±.00025 In
Individual or Set Individual
