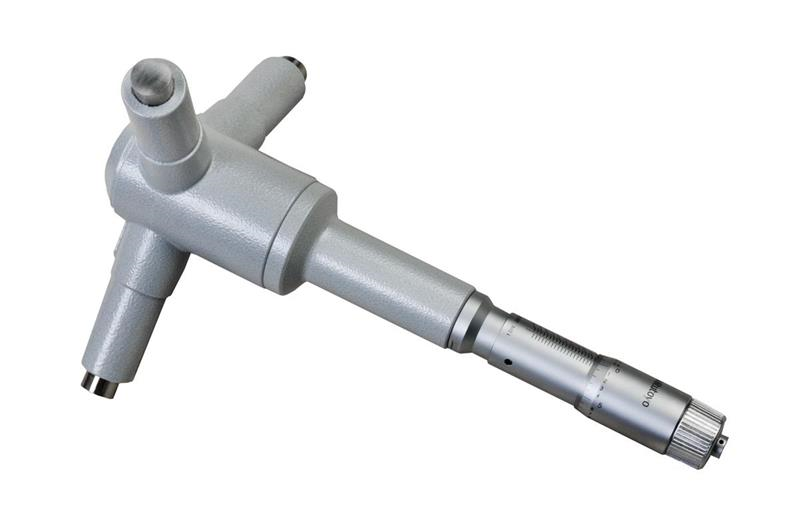

7-8 Inch, .0002 Inch, Holtest, Type II, Alloyed Steel Contact Points, Ratchet Stop

  • Item Code: 368-877
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has three contact points made of alloyed steel.
    • Measurement can be taken closer to the bottom of the blind bore.
    • Can measure deep holes with optional Extension Rods.

Tech Specs

Back To Top
Length Measurement 3.86 In
Individual or Set Individual
Primary (Outside Diameter) Contact Point Material Hardened Steel
Measuring Method 3-point
Primary Measuring Range Lower - Inch 7 In
Primary Measuring Range Upper - Inch 8 In
Accuracy ±.00025 In
Brand Mitutoyo
Mechanical or Digital Mechanical
Range 7 - 8 In
Resolution or Graduation .0002 In
Case Material Plastic Case
Case Part Number 04MAA266
Clutch Ratchet Stop
