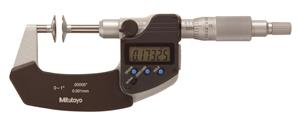

0-1 Inch, 0.00005 Inch, Digimatic Disk Micrometer, .787 Inch/20mm Diameter .028 Inch/0.7mm Edge Thickness Disk, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop

  • Item Code: 369-350-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to easily measure root tangent length of spur gears and helical gears.
    • Non-rotating spindle eliminates torgue on workpiece.
    • SPC output

Tech Specs

Back To Top
Case Part Number 04MZA022
IP Rating IP54
Clutch Ratchet Stop
Contact Point Flatness .00004 In
Data Output Y
Data Output Cable - 80 inch 05CZA663
Primary (Outside Diameter) Contact Point Material Hardened Steel
Thimble Diameter Measurement 18mm
Brand Mitutoyo
Finish Enamel
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Accuracy ±.0002 In
Spindle Face Disk
Individual or Set Individual
Parallelism .00016 In
Primary Measuring Range Upper - Inch 1 In
Case Material Plastic Case
Resolution or Graduation .00005 In
Contact Point Diameter .787 In
Data Output Cable - 40 inch 05CZA662
Range 0 - 1 In/0 - 25.4mm
Spindle Lock Y
