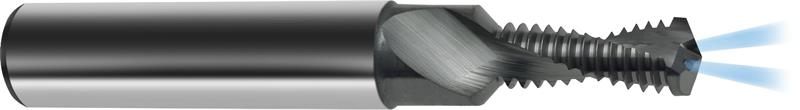

M12x1.75 Threadmill, 2 flutes, Carbide, TiCN Coated, with Coolant

  • Item Code: 3781-12.000
  • Brand: Guhring
  • Unit Size: 1

Description

Drill/Thread with countersink combo

Thread mills provide an alternative process for manufacturing threads where tapping may not be a viable solution. Difficult or hardened materials, extremely tight pitch diameter or dimensional tolerance, and very large diameter threads are all candidates for the thread milling process.

Solid carbide cutters with straight shanks, spiral fluted for vibration dampening, with or without internal coolant delivery, standard with TiCN coating or bright finish, these cutters are engineered for the precise milling of one thread size.

Tech Specs

Back To Top
Diameter (mm) 11.999
Coating TiCN
Material Carbide
Number of flutes 2
Overall Length (decimal) 3.5433
Series 3781
Brand Guhring
Shank Diameter (mm) 14
Overall Length (mm) 90
threadtype metric
Coolant with
Reach (mm) 36
Diameter M12x1.75
