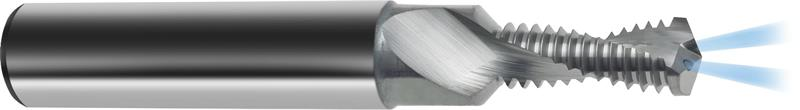

M12X1.5 Threadmill, 2 flutes, Carbide, with Coolant

  • Item Code: 3791-12.007
  • Brand: Guhring
  • Unit Size: 1

Description

Drill/Thread with countersink combo

Thread mills provide an alternative process for manufacturing threads where tapping may not be a viable solution. Difficult or hardened materials, extremely tight pitch diameter or dimensional tolerance, and very large diameter threads are all candidates for the thread milling process.

Solid carbide cutters with straight shanks, spiral fluted for vibration dampening, with or without internal coolant delivery, standard with TiCN coating or bright finish, these cutters are engineered for the precise milling of one thread size.

Tech Specs

Back To Top
Material Carbide
Number of flutes 2
Brand Guhring
Series 3791
Overall Length (decimal) 3.5433
Shank Diameter (mm) 14
threadtype metric fine
Overall Length (mm) 90
Coolant with
Diameter M12X1.5
Diameter (mm) 11.999
Reach (mm) 37
