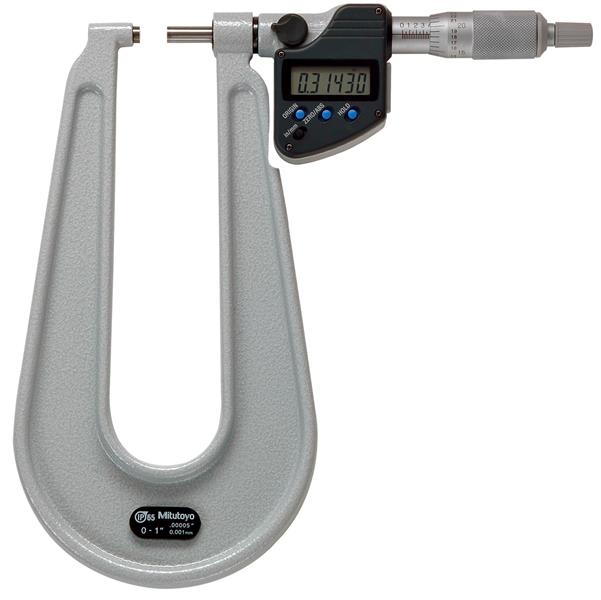

0-1 Inch/0-25.4mm, .00005 Inch/0.001mm IP65 Digimatic Sheet Metal Micrometer, With SPC Data Output, Ratchet Stop

  • Item Code: 389-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measures thickness of sheet metal, paper, plastic, and rubber parts.
    • With Ratchet Stop for constant force.

Tech Specs

Back To Top
Case Part Number 475543
Individual or Set Individual
IP Rating IP65
Length Measurement 6.3 In
Resolution or Graduation .00005 In
Case Material Plastic Case
Spindle Face Flat
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
Range 0 - 1 In/0 - 25.4mm
Clutch Ratchet Stop
Finish Enamel
Primary Measuring Range Lower - Inch 0 In
Parallelism .00012 In
Data Output Cable - 40 inch 05CZA662
Mechanical or Digital Digimatic
Spindle Lock Y
Data Output Y
Primary Measuring Range Upper - Inch 1 In
Accuracy ±.0002 In
Brand Mitutoyo
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
