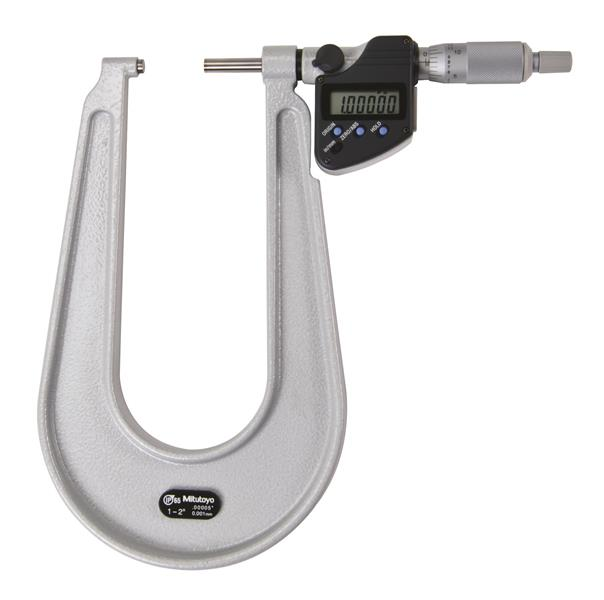

1-2 Inch/25.4-50.8mm, .00005 Inch/0.001mm IP65 Digimatic Sheet Metal Micrometer, With SPC Data Output, Ratchet Stop

  • Item Code: 389-352-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Measures thickness of sheet metal, paper, plastic, and rubber parts.
    • With Ratchet Stop for constant force.

Tech Specs

Back To Top
Case Material Plastic Case
Spindle Face Flat
Individual or Set Individual
IP Rating IP65
Length Measurement 6.3 In
Resolution or Graduation .00005 In
Accuracy ±.0002 In
Contact Point Diameter 6.35mm
Brand Mitutoyo
Clutch Ratchet Stop
Mechanical or Digital Digimatic
Data Output Y
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Finish Enamel
Primary Measuring Range Lower - Inch 1 In
Data Output Cable - 40 inch 05CZA662
Parallelism .00012 In
Primary Measuring Range Upper - Inch 2 In
Range 1 - 2 In / 25.4 - 50.8mm
Spindle Lock Y
Case Part Number 475543
Contact Point Flatness .000024 In
Primary (Outside Diameter) Contact Point Material Carbide
