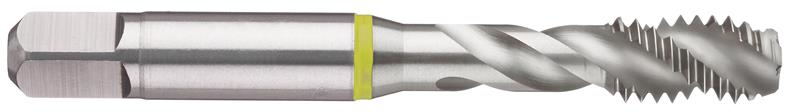

M10X1.5 Tap, metric thread, D4/D5, 3 flutes, HSS-E, Bright Finish, 40° Spiral Flute
- Item Code: 3903-10.00
- Brand: Guhring
- Unit Size: 1
Description
Yellow Ring /General Purpose Tap for Structural Steels, Free-machining steels, unalloyed case hardened steels, unalloyed heat-treatable steels
Tech Specs
Back To Top| Brand | Guhring |
|---|---|
| Reach (decimal) | 1.4560 |
| Series | 3903 |
| Coolant | without |
| Diameter (mm) | 10 |
| Number of flutes | 3 |
| threadtype | metric |
| Coating | Bright |
| Overall Length (decimal) | 2.9410 |
| H Limit | D4/D5 |
| Shank Diameter (mm) | 9.6774 |
| Square Size (decimal) | 0.286 |
| Diameter | M10X1.5 |
| Helix Angle | 40° |
| Material | HSS-E |
| Overall Length (mm) | 74.7014 |
