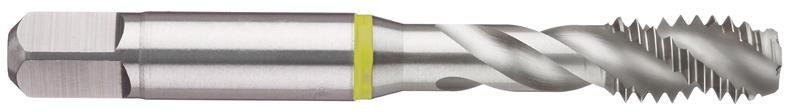

M16X2 Tap, Modified Bottom, metric thread, D6/D7, 3 flutes, HSS-E, 40° Spiral Flute
- Item Code: 3903-16.000
- Brand: Guhring
- Unit Size: 1
Description
Yellow Ring /General Purpose Tap for Structural Steels, Free-machining steels, unalloyed case hardened steels, unalloyed heat-treatable steels
Tech Specs
Back To Top| Overall Length (decimal) | 3.8110 |
|---|---|
| Series | 3903 |
| Diameter (mm) | 16 |
| Number of flutes | 3 |
| threadtype | metric |
| Brand | Guhring |
| chamfer (decimal) | Modified Bottom |
| Shank Diameter (mm) | 12.192 |
| Diameter | M16X2 |
| Overall Length (mm) | 96.7994 |
| Square Size (decimal) | 0.36 |
| H Limit | D6/D7 |
| Helix Angle | 40° |
| Material | HSS-E |
