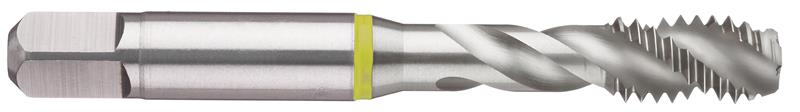

M3X.5 Tap, Modified Bottom, metric thread, D2/D3, 3 flutes, HSS-E, 40° Spiral Flute
- Item Code: 3903-3.000
- Brand: Guhring
- Unit Size: 1
Description
Yellow Ring /General Purpose Tap for Structural Steels, Free-machining steels, unalloyed case hardened steels, unalloyed heat-treatable steels
Tech Specs
Back To Top| Square Size (mm) | 2.1 |
|---|---|
| Shank Diameter (mm) | 3.5814 |
| Series | 3903 |
| H Limit | D2/D3 |
| Helix Angle | 40° |
| Material | HSS-E |
| Reach (decimal) | 0.7090 |
| chamfer (decimal) | Modified Bottom |
| Overall Length (mm) | 49.3014 |
| Brand | Guhring |
| Diameter (mm) | 3 |
| Overall Length (decimal) | 1.9410 |
| Diameter | M3X.5 |
| Number of flutes | 3 |
| threadtype | metric |
