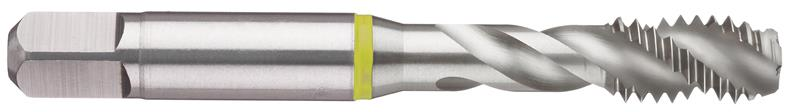

M4X.7 Tap, Modified Bottom, metric thread, D3/D4, 3 flutes, HSS-E, 40° Spiral Flute
- Item Code: 3903-4.000
- Brand: Guhring
- Unit Size: 1
Description
Yellow Ring /General Purpose Tap for Structural Steels, Free-machining steels, unalloyed case hardened steels, unalloyed heat-treatable steels
Tech Specs
Back To Top| Brand | Guhring |
|---|---|
| Diameter (mm) | 4.001 |
| Shank Diameter (mm) | 4.2672 |
| chamfer (decimal) | Modified Bottom |
| Helix Angle | 40° |
| Material | HSS-E |
| Series | 3903 |
| Number of flutes | 3 |
| Overall Length (decimal) | 2.1300 |
| Reach (decimal) | 0.8270 |
| threadtype | metric |
| H Limit | D3/D4 |
| Overall Length (mm) | 54.102 |
| Diameter | M4X.7 |
| Square Size (mm) | 3.4 |
