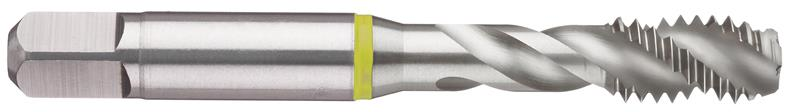

M8X1.25 Tap, Modified Bottom, metric thread, D4/D5, 3 flutes, HSS-E, 40° Spiral Flute
- Item Code: 3903-8.000
- Brand: Guhring
- Unit Size: 1
Description
Yellow Ring /General Purpose Tap for Structural Steels, Free-machining steels, unalloyed case hardened steels, unalloyed heat-treatable steels
Tech Specs
Back To Top| Reach (decimal) | 1.3770 |
|---|---|
| chamfer (decimal) | Modified Bottom |
| Diameter (mm) | 8.001 |
| Series | 3903 |
| Diameter | M8X1.25 |
| Helix Angle | 40° |
| H Limit | D4/D5 |
| Material | HSS-E |
| Shank Diameter (mm) | 8.0772 |
| Number of flutes | 3 |
| Overall Length (decimal) | 2.7210 |
| Overall Length (mm) | 69.1134 |
| threadtype | metric |
| Brand | Guhring |
| Square Size (decimal) | 0.238 |
