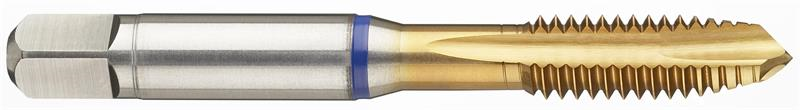

1/2-20 Tap, UNF thread, H4/H5, 3 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-12.70
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Diameter | 1/2-20 |
|---|---|
| Material | HSS-E-PM |
| threadtype | UNF |
| Coating | TiN |
| Coolant | without |
| Series | 3908 |
| Overall Length (decimal) | 3.3820 |
| Square Size (decimal) | 0.2752 |
| Number of flutes | 3 |
| Brand | Guhring |
| Shank Diameter (mm) | 9.3218 |
| Diameter (mm) | 12.7 |
| H Limit | H4/H5 |
| Overall Length (mm) | 85.9028 |
