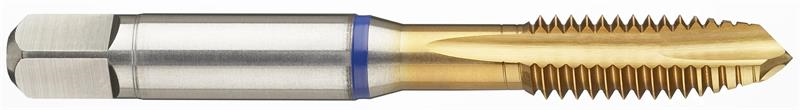

9/16-18 Tap, UNF thread, H4/H5, 3 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-14.288
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Diameter | 9/16-18 |
|---|---|
| Series | 3908 |
| Number of flutes | 3 |
| Square Size (decimal) | 0.322 |
| threadtype | UNF |
| Brand | Guhring |
| H Limit | H4/H5 |
| Overall Length (decimal) | 3.5910 |
| Overall Length (mm) | 91.2114 |
| Coating | TiN |
| Material | HSS-E-PM |
| Coolant | without |
| Diameter (mm) | 14.288 |
| Shank Diameter (mm) | 10.8966 |
