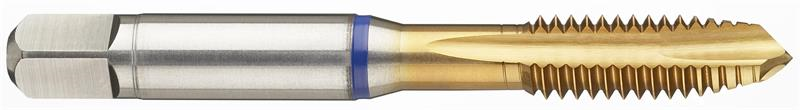

5/8-18 Tap, Spiral Point Plug, UNF thread, H4/H5, 3 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-15.875
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| chamfer (decimal) | Spiral Point Plug |
|---|---|
| Diameter | 5/8-18 |
| H Limit | H4/H5 |
| Shank Diameter (mm) | 12.192 |
| Coating | TiN |
| Diameter (mm) | 15.87 |
| Number of flutes | 3 |
| Brand | Guhring |
| Material | HSS-E-PM |
| threadtype | UNF |
| Series | 3908 |
| Overall Length (decimal) | 3.8110 |
| Overall Length (mm) | 96.7994 |
| Square Size (decimal) | 0.36 |
