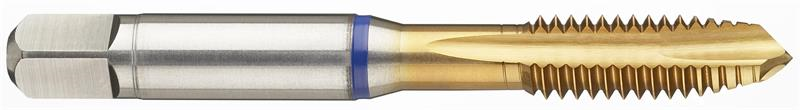

3/4-16 Tap, Spiral Point Plug, UNF thread, H5/H6, 4 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-19.050
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Overall Length (decimal) | 4.2520 |
|---|---|
| Square Size (decimal) | 0.4421 |
| Coating | TiN |
| Series | 3908 |
| Shank Diameter (mm) | 14.986 |
| Brand | Guhring |
| chamfer (decimal) | Spiral Point Plug |
| H Limit | H5/H6 |
| Overall Length (mm) | 108.0008 |
| Diameter | 3/4-16 |
| Diameter (mm) | 19.05 |
| Material | HSS-E-PM |
| Number of flutes | 4 |
| threadtype | UNF |
