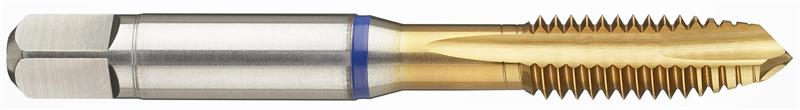

4-48 Tap, UNF thread, H2/H3, 3 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-2.845
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Series | 3908 |
|---|---|
| Coating | TiN |
| Coolant | without |
| Reach (decimal) | 0.7090 |
| Shank Diameter (mm) | 3.5814 |
| Number of flutes | 3 |
| Overall Length (decimal) | 1.8820 |
| Overall Length (mm) | 47.8028 |
| H Limit | H2/H3 |
| Square Size (decimal) | 0.1098 |
| Diameter (mm) | 2.8448 |
| Material | HSS-E-PM |
| Brand | Guhring |
| Diameter | 4-48 |
| threadtype | UNF |
