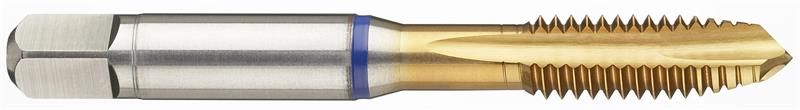

7/8-14 Tap, Spiral Point Plug, UNF thread, H6/H7, 4 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-22.225
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Brand | Guhring |
|---|---|
| chamfer (decimal) | Spiral Point Plug |
| H Limit | H6/H7 |
| Diameter (mm) | 22.22 |
| Series | 3908 |
| Shank Diameter (mm) | 17.7038 |
| Square Size (decimal) | 0.523 |
| Material | HSS-E-PM |
| Overall Length (mm) | 119.1006 |
| threadtype | UNF |
| Coating | TiN |
| Diameter | 7/8-14 |
| Number of flutes | 4 |
| Overall Length (decimal) | 4.6890 |
