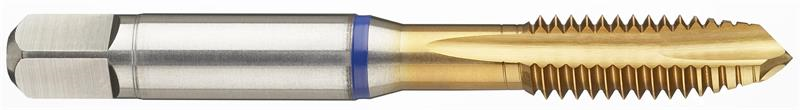

8-36 Tap, Spiral Point Plug, UNF thread, H2/H3, 3 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-4.166
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| H Limit | H2/H3 |
|---|---|
| Diameter (mm) | 4.166 |
| Overall Length (mm) | 54.102 |
| Brand | Guhring |
| Overall Length (decimal) | 2.1300 |
| Reach (decimal) | 0.8270 |
| Series | 3908 |
| Material | HSS-E-PM |
| Number of flutes | 3 |
| threadtype | UNF |
| chamfer (decimal) | Spiral Point Plug |
| Diameter | 8-36 |
| Shank Diameter (mm) | 4.2672 |
| Square Size (decimal) | 0.1311 |
| Coating | TiN |
