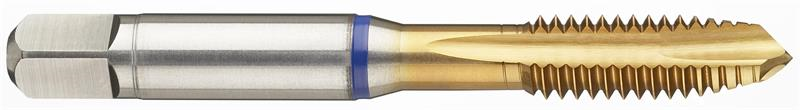

10-32 Tap, Spiral Point Plug, UNF thread, H3/H4, 3 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-4.826
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Diameter | 10-32 |
|---|---|
| Diameter (mm) | 4.826 |
| Material | HSS-E-PM |
| Number of flutes | 3 |
| Reach (decimal) | 0.9450 |
| threadtype | UNF |
| Square Size (decimal) | 0.152 |
| chamfer (decimal) | Spiral Point Plug |
| Coating | TiN |
| Overall Length (mm) | 60.5028 |
| Shank Diameter (mm) | 4.9276 |
| Brand | Guhring |
| H Limit | H3/H4 |
| Series | 3908 |
| Overall Length (decimal) | 2.3820 |
