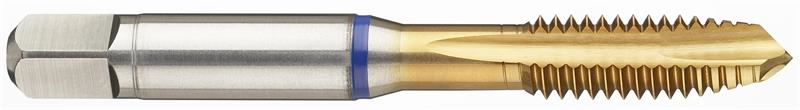

1/4-28 Tap, UNF thread, H3/H4, 3 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-6.35
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Brand | Guhring |
|---|---|
| Material | HSS-E-PM |
| Shank Diameter (mm) | 6.477 |
| threadtype | UNF |
| Coolant | without |
| Diameter (mm) | 6.35 |
| Overall Length (decimal) | 2.5000 |
| Diameter | 1/4-28 |
| Reach (decimal) | 1.1810 |
| Number of flutes | 3 |
| Overall Length (mm) | 63.5 |
| Series | 3908 |
| Square Size (decimal) | 0.1909 |
| Coating | TiN |
| H Limit | H3/H4 |
