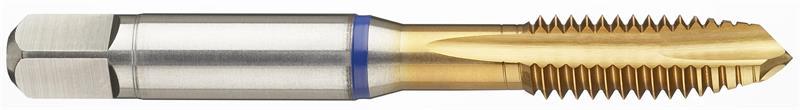

5/16-24 Tap, UNF thread, H3/H4, 3 flutes, HSS-E-PM, TiN Coated
- Item Code: 3908-7.938
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Coating | TiN |
|---|---|
| Coolant | without |
| Overall Length (decimal) | 2.7210 |
| Overall Length (mm) | 69.1134 |
| Reach (decimal) | 1.3770 |
| Series | 3908 |
| Diameter (mm) | 7.938 |
| Number of flutes | 3 |
| Square Size (decimal) | 0.2382 |
| H Limit | H3/H4 |
| Diameter | 5/16-24 |
| Brand | Guhring |
| threadtype | UNF |
| Shank Diameter (mm) | 8.0772 |
| Material | HSS-E-PM |
