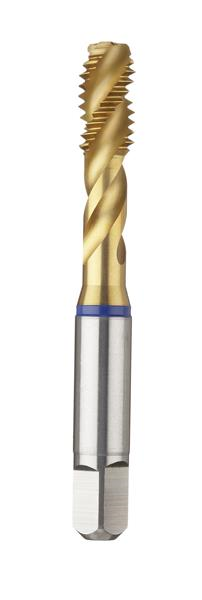

9/16-12 Tap, Modified Bottom, UNC thread, H5/H6, 3 flutes, HSS-E-PM, TiN Coated, 40° Spiral Flute
- Item Code: 3910-14.288
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| H Limit | H5/H6 |
|---|---|
| Overall Length (decimal) | 3.5910 |
| Overall Length (mm) | 91.2114 |
| Coating | TiN |
| Diameter (mm) | 14.288 |
| Helix Angle | 40° |
| Shank Diameter (mm) | 10.8966 |
| Number of flutes | 3 |
| Square Size (decimal) | 0.322 |
| Series | 3910 |
| Brand | Guhring |
| chamfer (decimal) | Modified Bottom |
| threadtype | UNC |
| Diameter | 9/16-12 |
| Material | HSS-E-PM |
