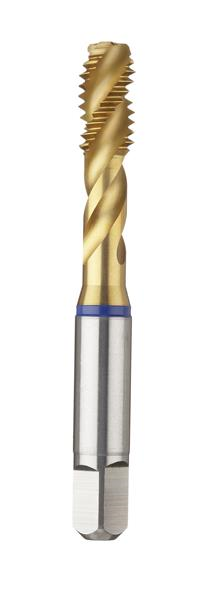

7/8-9 Tap, Modified Bottom, UNC thread, H6/H7, 4 flutes, HSS-E-PM, TiN Coated, 40° Spiral Flute
- Item Code: 3910-22.225
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Brand | Guhring |
|---|---|
| H Limit | H6/H7 |
| Material | HSS-E-PM |
| threadtype | UNC |
| Overall Length (decimal) | 4.6890 |
| chamfer (decimal) | Modified Bottom |
| Coating | TiN |
| Diameter | 7/8-9 |
| Diameter (mm) | 22.22 |
| Helix Angle | 40° |
| Shank Diameter (mm) | 17.7038 |
| Square Size (decimal) | 0.523 |
| Series | 3910 |
| Number of flutes | 4 |
| Overall Length (mm) | 119.1006 |
