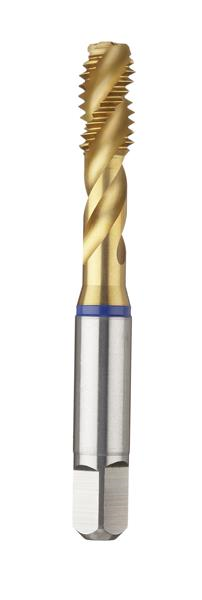

6-32 Tap, Modified Bottom, UNC thread, H3/H4, 3 flutes, HSS-E-PM, TiN Coated, 40° Spiral Flute
- Item Code: 3910-3.505
- Brand: Guhring
- Unit Size: 1
Description
Blue Ring Cut taps for Stainless Steel and Aerospace Alloys
Tech Specs
Back To Top| Square Size (decimal) | 0.11 |
|---|---|
| Helix Angle | 40° |
| chamfer (decimal) | Modified Bottom |
| Coating | TiN |
| Diameter | 6-32 |
| Diameter (mm) | 3.503 |
| Material | HSS-E-PM |
| Number of flutes | 3 |
| Overall Length (mm) | 50.8 |
| Overall Length (decimal) | 2.0000 |
| Series | 3910 |
| Brand | Guhring |
| H Limit | H3/H4 |
| Reach (decimal) | 0.7480 |
| Shank Diameter (mm) | 3.5814 |
| threadtype | UNC |
