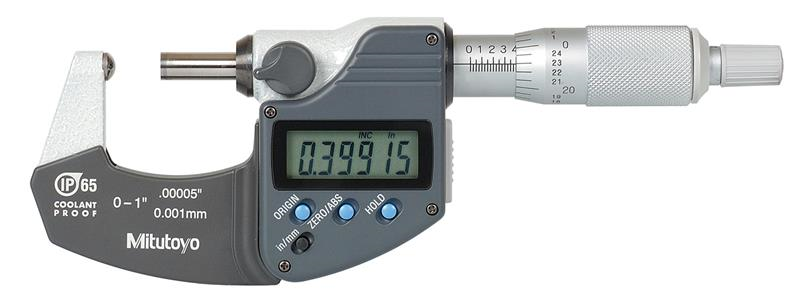

0-1 Inch/0-25.4mm, .00005 Inch/0.001mm Digimatic Spherical Face Micrometer, Carbide Steel Tip, Spherical Anvil Flat Spindle, .59 Inch Max Inside Diameter, Ratchet Stop

  • Item Code: 395-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

With SPC Data Output

Features Tech Specs

Features

Back To Top
    • Designed to measure the wall thickness of vaious tubing.
    • With Ratchet Stop for constant force.
    • IP65 water/dust protection.

Tech Specs

Back To Top
Case Part Number 04MAA213
Individual or Set Individual
IP Rating IP65
Resolution or Graduation .00005 In
Case Material Plastic Case
Primary Measuring Range Upper - Inch 1 In
Spindle Face Flat
Contact Point Flatness .000024 In
Data Output Cable - 40 inch 05CZA662
Range 0 - 1 In/0 - 25.4mm
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary (Outside Diameter) Contact Point Material Carbide
Finish Enamel
Spindle Lock Y
Clutch Ratchet Stop
Contact Point Diameter Special
Primary Measuring Range Lower - Inch 0 In
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Accuracy ±.0001 In
Data Output Y
