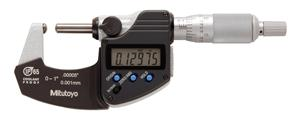

0-1 Inch, 0.00005 Inch, Digimatic Spherical Face Micrometer, Carbide Steel Tip, Spherical Anvil Spherical Spindle, .59 Inch Max Inside Diameter, With SPC Data Output, Ratchet Stop

  • Item Code: 395-371-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to measure the wall thickness of vaious tubing.
    • With Ratchet Stop for constant force.
    • IP65 water/dust protection.

Tech Specs

Back To Top
Clutch Ratchet Stop
Contact Point Diameter Special
Primary Measuring Range Lower - Inch 0 In
Brand Mitutoyo
Case Part Number 04MAA213
Mechanical or Digital Digimatic
Individual or Set Individual
IP Rating IP65
Resolution or Graduation .00005 In
Contact Point Flatness .000024 In
Data Output Cable - 40 inch 05CZA662
Primary (Outside Diameter) Contact Point Material Carbide
Range 0 - 1 In/0 - 25.4mm
Spindle Face Spherical
Case Material Plastic Case
Primary Measuring Range Upper - Inch 1 In
Finish Enamel
Spindle Lock Y
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
Accuracy ±.0001 In
Data Output Y
