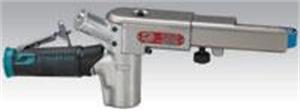

.5 hp, 7° Offset, 20,000 RPM, Front Exhaust, 1/4-3/4 Inch W x 18-24 Inch L (6-19 mm x 457-610 mm) Belt, Vacuum Dynafile II Abrasive Belt Tool

  • Item Code: 40330-DYNABRADE
  • Brand: Dynabrade
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Vacuum Dynafile II allows you to vacuum while you work. Highly portable vacuum system works on tool's exhaust.
    • Includes self-contained 'bag-within-bag' dust collection system. 54288 'bag-within-bag' system also sold separately.
    • Includes 11206 Contact Arm for 3/4" wide x 18" long abrasive belts.
    • Excellent for grinding, deburring, finishing and polishing, on wood, plastic, fiberglass and exotic metals.
    • Air line is included and joined to exhaust hose to form 'one cord' for superb maneuverability.

Tech Specs

Back To Top
Belt Size Inches (mm) 1/4-3/4" (6-19) W x 18-24" (457-610) L
Height Inches (mm) 5.3" (135)
Length Inches (mm) 14" (355)
Motor Style 7 Degree Offset
Motor Free Speed (RPM) 20,000
hp (W) .5 (373)
Air Inlet Thread 1/4" NPT
Hose I.D. Size Inches (mm) 1/4" (6)
Max. SFPM (SM/Min.) 5,730 (1,747)
Brand Dynabrade
Exhaust Type Front Exhaust
