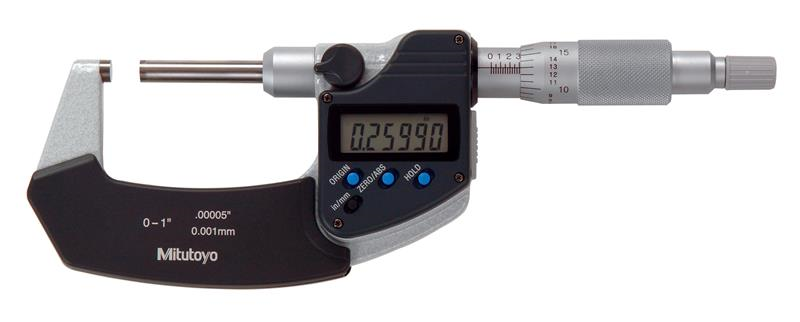

0-1 Inch, 0.00005 Inch, Digimatic Outside Micrometer, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop

  • Item Code: 406-350-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has SPC output.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Case Part Number 470286
Data Output Cable - 40 inch 05CZA662
Resolution or Graduation .00005 In
Contact Point Diameter 6.35mm
Finish Enamel
Mechanical or Digital Digimatic
Primary Measuring Range Lower - Inch 0 In
Spindle Lock Y
Case Material Plastic Case
Primary (Outside Diameter) Contact Point Material Carbide
Contact Point Flatness .000012 In
Individual or Set Individual
Spindle Face Flat
Clutch Ratchet Stop
Data Output Y
Primary Measuring Range Upper - Inch 1 In
Accuracy ±.00015 In
Parallelism .00012 In
Range 0 - 1 In/0 - 25.4mm
Brand Mitutoyo
Data Output Cable - 80 inch 05CZA663
Thimble Diameter Measurement 18mm
