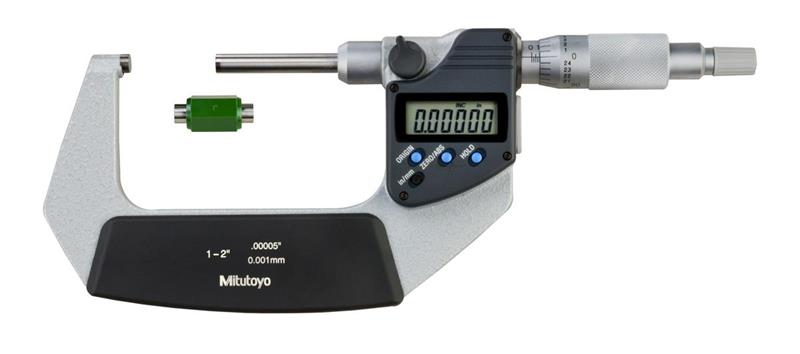

1-2 Inch, 0.00005 Inch, Digimatic Outside Micrometer, Non-Rotating Spindle, With SPC Data Output, Ratchet Stop

  • Item Code: 406-351-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Has SPC output.
    • Supplied in a fitted plastic case.

Tech Specs

Back To Top
Individual or Set Individual
Resolution or Graduation .00005 In
Contact Point Flatness .000012 In
Data Output Cable - 40 inch 05CZA662
Case Material Plastic Case
Primary Measuring Range Upper - Inch 2 In
Spindle Face Flat
Clutch Ratchet Stop
Finish Enamel
Parallelism .00012 In
Spindle Lock Y
Case Part Number 470286
Data Output Y
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 1 In
Accuracy ±.00015 In
Contact Point Diameter 6.35mm
Data Output Cable - 80 inch 05CZA663
Range 1 - 2 In/25.4 - 50.8mm
Thimble Diameter Measurement 18mm
