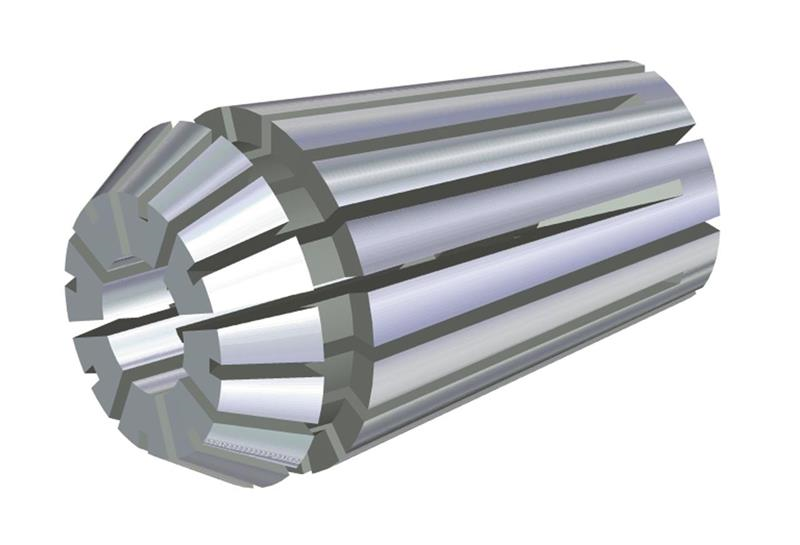

18mm, Series ER40, M22 & M24 Tap Size, ER Hand Tap Collet
- Item Code: 40ERTC180145M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER40
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Body Diameter | 40.80 MM |
|---|---|
| Clamping Diameter (Metric) | 18.00 MM |
| Overall Length | 46.00 MM |
| Clamping Hole Length | 25.00 MM |
| Product Name | Collet |
| Square Size | 14.50 MM |
| Type | Single Angle |
| Unit of Measure | Metric |
| Clamping Diameter (Decimal) | 0.7087 Inch |
| Shank Style | Taper |
| Brand | WIDIA-Erickson |
