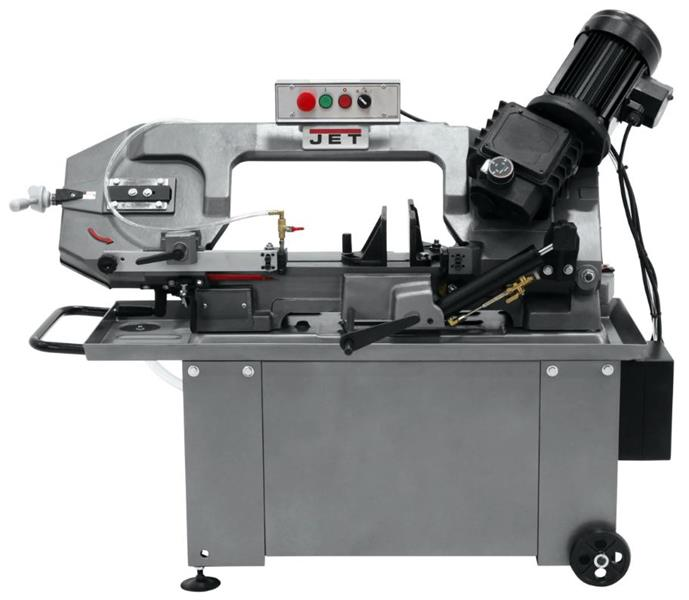

8 in. x 14 in., HBS-814GH, Horizontal Geared Head Bandsaw
- Item Code: 414466
- Brand: Jet
- Unit Size: 1
Description
The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line.
Features
Back To Top- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
- Heavy-duty geared head transmission for quick speed changes
- Fully adjustable hydraulic downfeed system
- Easily accessible saw control panel
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Built-in, self propelled blade brush extends blade life
- Wheels permit easy storage and movement
- Coolant system
- Adjustable material stop
- 3/4" Bi-Metal blade
Tech Specs
Back To Top| Blade Length (In.) | 97 |
|---|---|
| Blade Size (In.) | 3/4 x .035 x 97 |
| Blade Speeds (SFPM) | 135, 197, 256 |
| Blade Wheel Diameter (In.) | 12 |
| Cutting Capacity (W x D) (In.) | 8 x 14 |
| Gross Weight (lbs.) | 342 |
| Model Number | HBS-814GH |
| Overall Dimensions (L x W x H) (In.) | 53 x 18-1/8 x 44 |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 6 and 2 x 7 |
| Rectangle at 90 Degrees (In.) | 14 x 8 and 2 x 14 |
| Round at 45 Degrees (In.) | 6-1/2 |
| Throat Depth (In.) | 8 |
| UPC | 662755523434 |
| Weight (Lbs.) | 287 |
| Round at 90 Degrees (In.) | 8 |
| Bed Height (In.) | 26 |
| Country of Origin | TW |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Drive | Geared Head |
| Vise Swivels (Deg.) | 45 |
| Brand | Jet |
