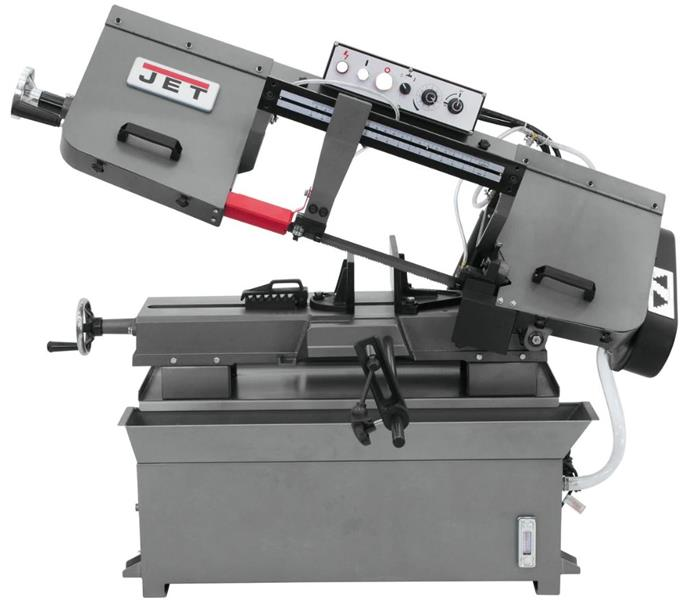

9 in. x 16 in., HBS-916W, Horizontal Bandsaw
- Item Code: 414468
- Brand: Jet
- Unit Size: 1
Description
Large handwheel, built-in gauge, blade guides, quick-positioning vise and removable chip tray are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time
Features
Back To Top- Large hand wheel and built-in gauge provides easy blade tensioning
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Easy access chip tray allows quick cleanup
- Blade is fully guarded, regardless of blade guide position
- Carbide blade guides feature parallel double-row ball bearing support
- Coolant is distributed through the blade guides
- Built-in, self propelled blade brush extends blade life
- Fully adjustable hydraulic downfeed with separate on/off control valve
- Automatic shut-off after cut
- Coolant system
Tech Specs
Back To Top| Bed Height (In.) | 25 |
|---|---|
| Blade Length (In.) | 119-1/2 |
| Blade Size (In.) | 1 x .035 x 119-1/2 |
| Cutting Capacity (W x D) (In.) | 9 x 16 |
| Gross Weight (lbs.) | 704 |
| Model Number | HBS-916W |
| Overall Dimensions (L x W x H) (In.) | 65 x 28 x 42 |
| Rectangle at 45 Degrees (In.) | 9 x 6-1/8 |
| Rectangle at 90 Degrees (In.) | 8-1/2 x 14 and 2 x 16 |
| Round at 45 Degrees (In.) | 6-1/8 |
| UPC | 662755607745 |
| Weight (Lbs.) | 704 |
| Drive | Belt Drive |
| Country of Origin | TW |
| Blade Wheel Diameter (In.) | 13 |
| Round at 90 Degrees (In.) | 9 |
| Blade Speeds (SFPM) | 82, 132, 170, 235 |
| Motor (HP) | 3 HP, 115/230V, 1Ph |
| Brand | Jet |
| Vise Swivels (Deg.) | 45 |
