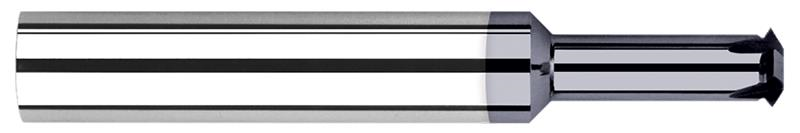

0.1800 in. Cutter Diameter x 0.7500 in. (3/4) Reach 4 Flute Amorphous Diamond Coated Carbide Single Form #1/4 Thread Milling Cutter

  • Item Code: 41450-C4
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill any pitch
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish Amorphous Diamond
Cutter Diameter Decimal 0.1800"
Included Angle 60
Material Solid Carbide
Length of Cut 0.0380"
Maximum Depth of Thread 0.7500" (3/4)
Neck Diameter 0.1150"
Overall Length 2.5000" (2-1/2)
Size 4-Jan
Angle per Side 30
Number of Flutes 4
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
