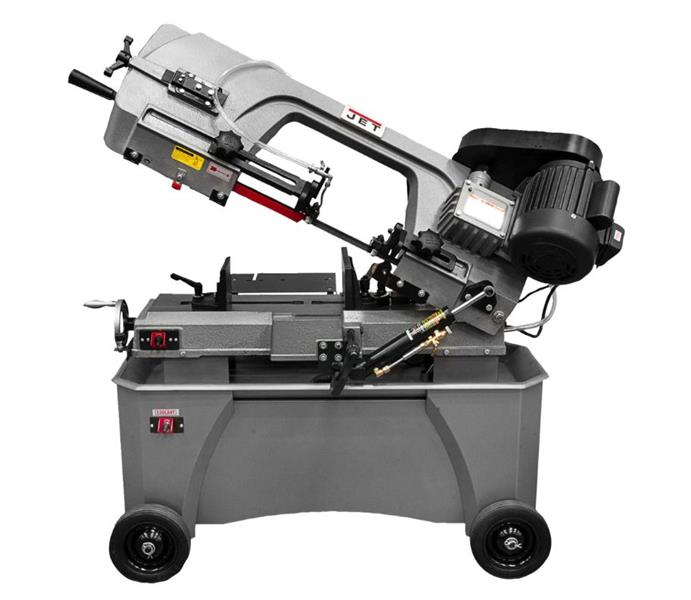

7 in. x 12 in., HVBS-712, Horizontal / Vertical Bandsaw
- Item Code: 414559
- Brand: Jet
- Unit Size: 1
Description
The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features you’ve come to expect.
Features
Back To Top- 9-7/16" x 10" work table in the vertical position
- Rapid action vise miters to 45°
- Improved Height and width of stand with built-in storage cabinet and chip tray
- Adjustable material stop for repeatability
- CSA/CUS Certification
- Blade drive is a belt to sealed, hardened and ground gear drive system
- Blade wheels are made from flanged cast iron for increased durability
- Auto shut-off after cut
- Adjustable ball bearing blade guides
- Cast mounted adjustable hydraulic downfeed
Tech Specs
Back To Top| Bed Height (In.) | 22-1/4 |
|---|---|
| Blade Length (In.) | 93 |
| Blade Size (In.) | 3/4 x 0.032 x 93 |
| Coolant Capacity (Gal.) | 1 |
| Model Number | HVBS-712 |
| Overall Dimensions (L x W x H) (In.) | 48 x 17 x 40 |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 4-1/2 |
| Rectangle at 90 Degrees (In.) | 4 x 11 / 7 x 10-3/8 |
| Square at 45 Degrees (In.) | 4-1/2 x 4-1/2 |
| Square at 90 Degrees (In.) | 7 x 7 |
| UPC | 731325452518 |
| Weight (Lbs.) | 418 |
| Brand | Jet |
| Round at 90 Degrees (In.) | 7 |
| Head Movement (Deg.) | 0 |
| Vise Swivels (Deg.) | 45 |
| Motor (HP) | 3/4 HP, 115/230V, 1Ph |
| Throat Depth (In.) | 7 |
| Blade Speeds (SFPM) | 86, 132, 178, 260 |
| Cutting Capacity (W x D) (In.) | 7 x 12 |
| Blade Wheel Diameter (In.) | 11-3/4 |
| Drive | Step Pulley |
| Country of Origin | TW |
| Gross Weight (lbs.) | 330 |
| Round at 45 Degrees (In.) | 4-1/2 |
