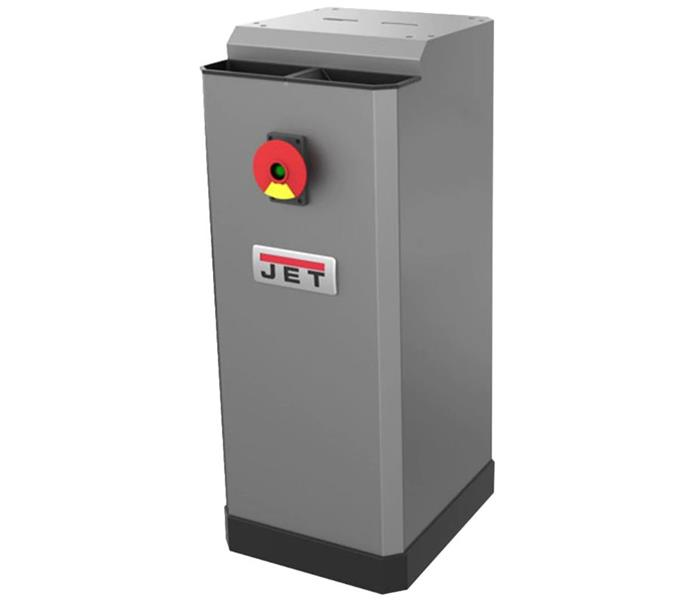

JDCS-505, Metal Dust Collector Stand 115V
- Item Code: 414800
- Brand: Jet
- Unit Size: 1
Description
JET’S new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders.
Features
Back To Top- Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders
- Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
- Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
- Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
- Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
- ANY BRAND bench top belt, disc or combination machine can be mounted using the optional Universal Adapter Plate (414830)| Two 115V Outlets on side of unit for lamps
- Heavy-Duty 16 gauge steel construction
- Four Adjustable Leveling Pads
- Large On/off switch with safety key
Tech Specs
Back To Top| Filter Efficiency | 90% @ 50 Microns |
|---|---|
| Filter Size (W x L x D) (In.) | 6-3/4 x 2-5/8 x 13-1/2 |
| Max. Static Pressure (Wc.) | 2,440 |
| Maximum CFM | 472 |
| Maximum Hose Velocity (SFPM) | 3,465 |
| Model Number | JDCS-505 |
| Motor (HP) | 1/2 HP, 115V, 1Ph (20A) |
| Overall Dimensions (L x W xH) (In.) | 15-1/2 x 16 x 32-1/4 |
| Sound Rating (Db.) | 75 db @ 10 Ft |
| Static Pressure (Wc.) | 748 |
| Style (Type) | Stand |
| UPC | 731325450248 |
| Country of Origin | TW |
| Weight (Lbs.) | 110 |
| Brand | Jet |
| Gross Weight (lbs.) | 86 |
| Hose Size (W x L) (In.) | 2 Inlets @ 3" |
