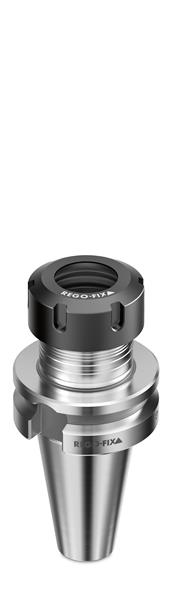

100mm x BT50 x ER32 H Collet Chuck

  • Item Code: 4150.13250
  • Brand: Rego-Fix
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Case hardened to 58-62 HRc
    • Pre-balanced to G2.5 @ 22,000 RPM's
    • T.I.R. from the collet cavity to the holder taper 0.0001" or better
    • Lot Numbers for lot traceability
    • Through the spindle coolant or through the flange version available
    • BT & CAT+ have Hi-Q clamping nut included
    • AT3 or better tapers guaranteed
    • Superior surface finish at 0.25Ra for better fit and accuracy
    • Swiss made to ISO 90001
    • Big Plus System - Licensed by Big Daishowa

Tech Specs

Back To Top
Nose Diameter 3.93
Brand Rego-Fix
Mount BT50
Head Length/Projection 3.93
Wrench Number 7111.32000
Type Standard
Collet Style ER32
